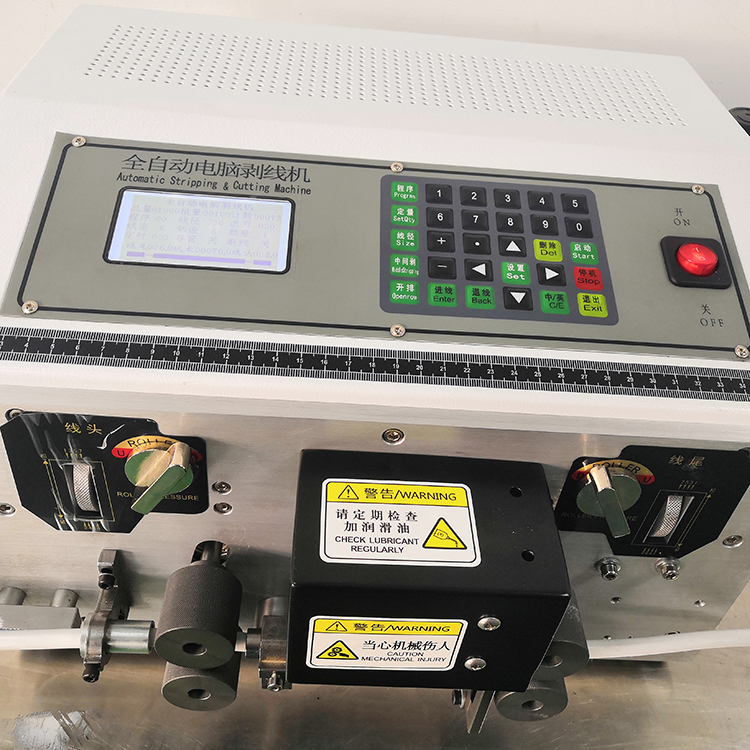

Automatic sheath type computer cutting and stripping machine
Features:
The machine uses the latest 32 intelligent control system, Chinese and English switching liquid crystal display, button operation, can store hundreds of pieces of information, called at any time, fast efficient,Compatible with the general features of 220 # wire cutting machine.Double linear,two wires can be processed simultaneously,not only saves labor and time,but also improve productivity.Mainly used for electronic wire, silicone wire,Teflon wire, glass fiber of cotton,isolated lines,coaxial,trunking.Automatic cutting, stripping, semi-stripping,multi-segment stripping , twisting function once completed, can instantly transform wire specifications and dimensions,it’s very economic. The machine is mainly used in electronics, electrical appliances, toys, auto parts and other industries.
Product Description
| Type | YH-H806 |
| Size | 470mm×450×340 |
| Weight | 45kg |
| Display method | Chinese or English interface display |
| Power supply | AC220/50Hz |
| Capacity | 420W |
| Cutting length | 1mm---99999mm |
| Cutting Tolerance | Modifiable |
| Peeling length | 1.0mm-100mm(According to the wire) |
| Applicable wire core area | The outer diameter of 1.5mm to 6mm |
| Productivity | 3500-5000pcs/h(according to the cutting length) |
| Tool Material | Tungsten steel / white steel |
| Warranty | Motherboard and screen are guaranteed for 3 years |
| Cable outer diameter | Adjustable |
| Stripping quality | Excellent |
| Decimal precision | Yes |
| Drive mode | Four simultaneously drive |
| Stripping pressure adjustment: | Adjustable |
| Speed adjustment | 0-9 |
| Stripping Mode | long wire/ short wire /Multi-stripping / multi stripping |
